Ten Count/Weight Net Sinker (3/16 Pin Standard) 4 Cavity

Tap for gallery

$149.95

(Quantity discounts available)


Product Information
Specification
Quantity Discounts

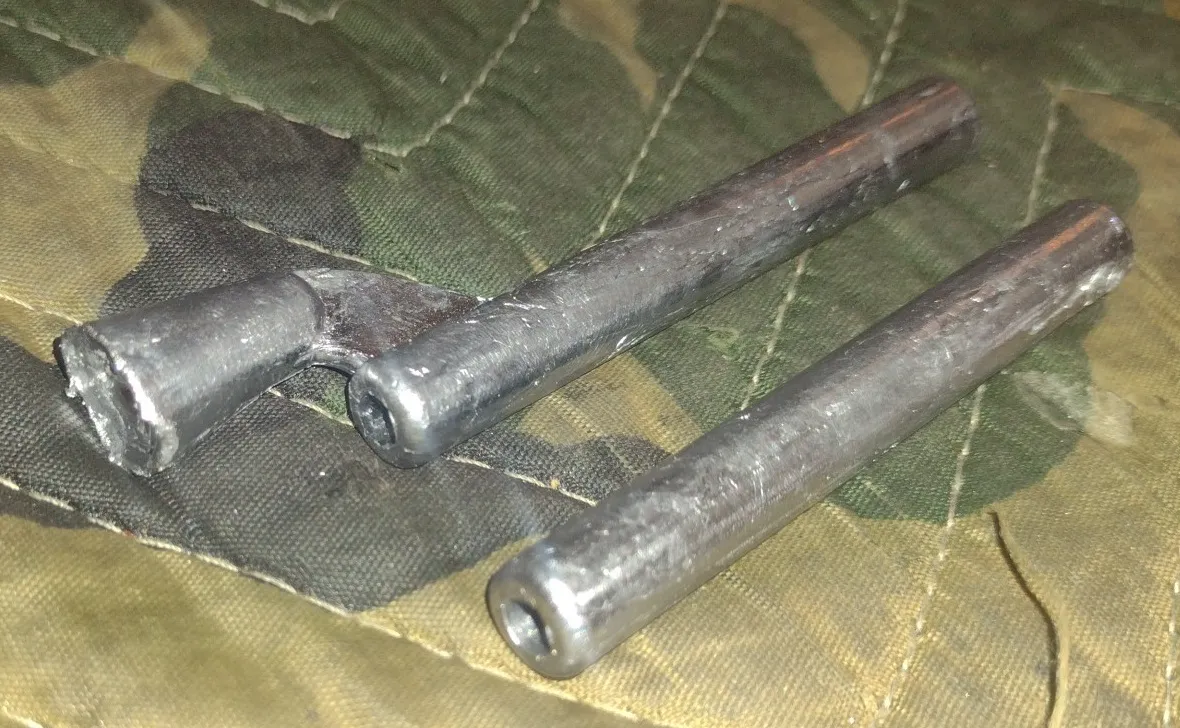

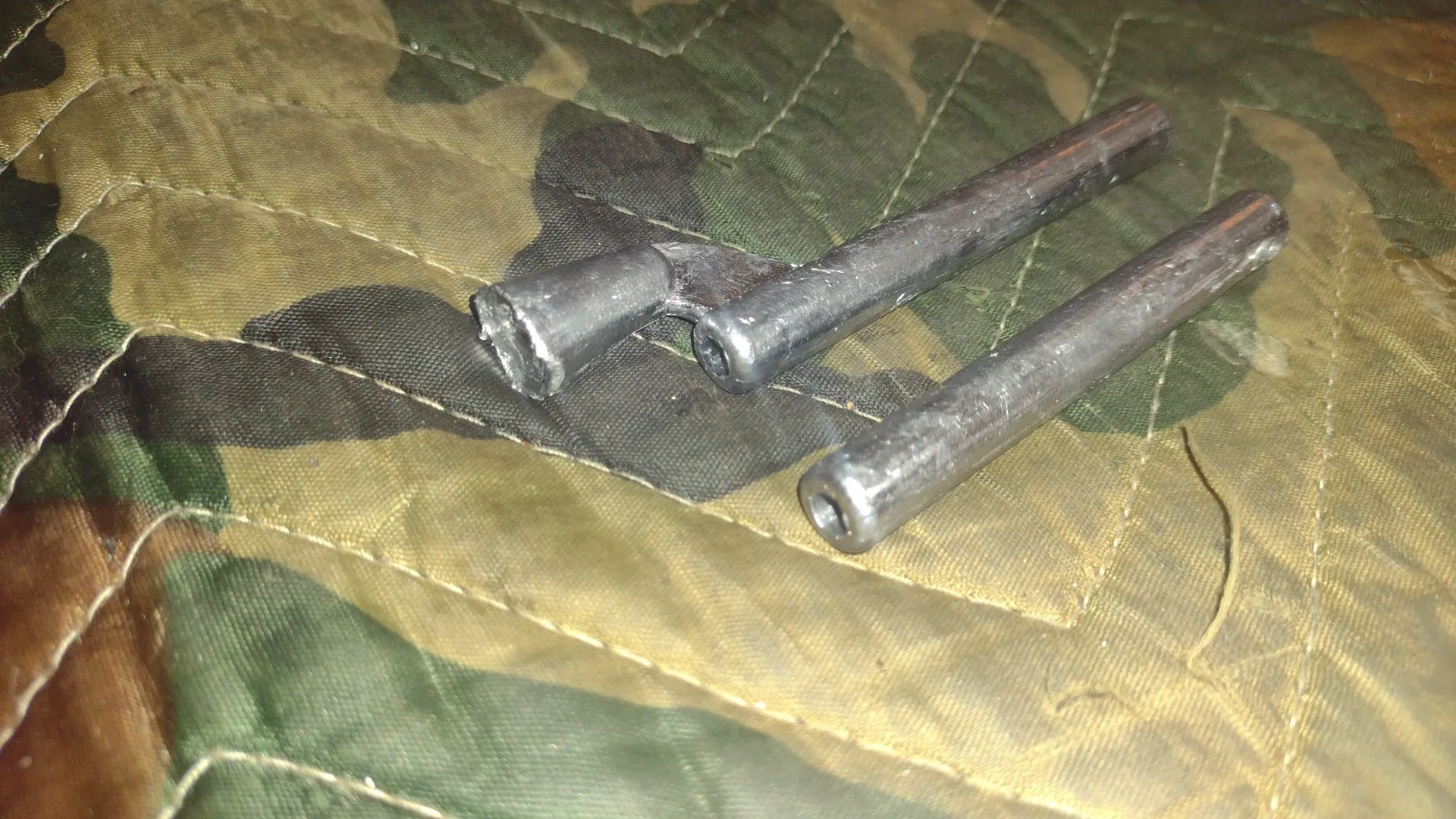

These are called a "ten weight" or a "ten count" weight because it takes approximately ten of them to make up one pound of lead.  These can be used for a variety of applications, but are often used on the bottom cord on throw or cast nets.
The standard pull pin is 3/16 inch.

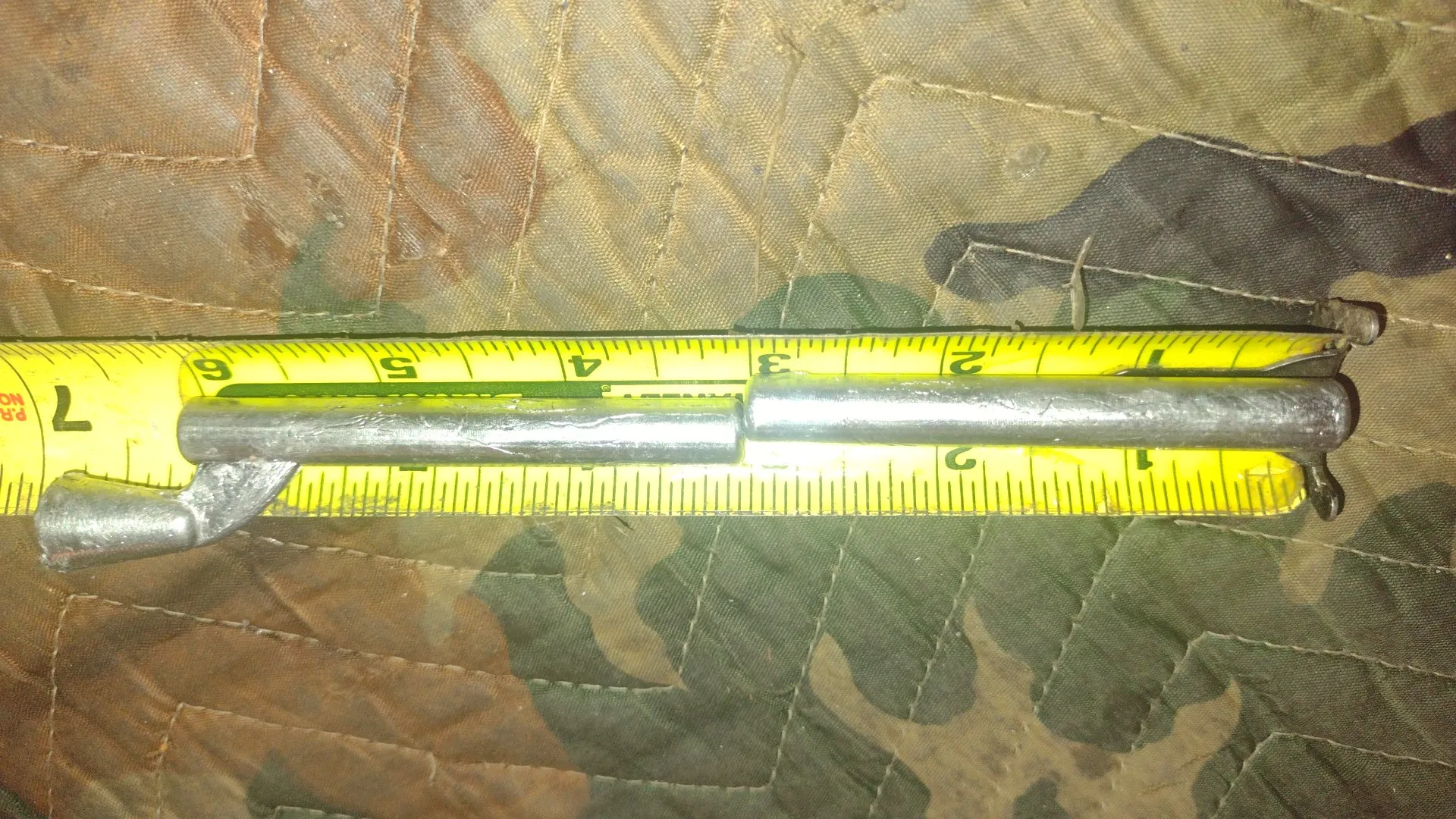

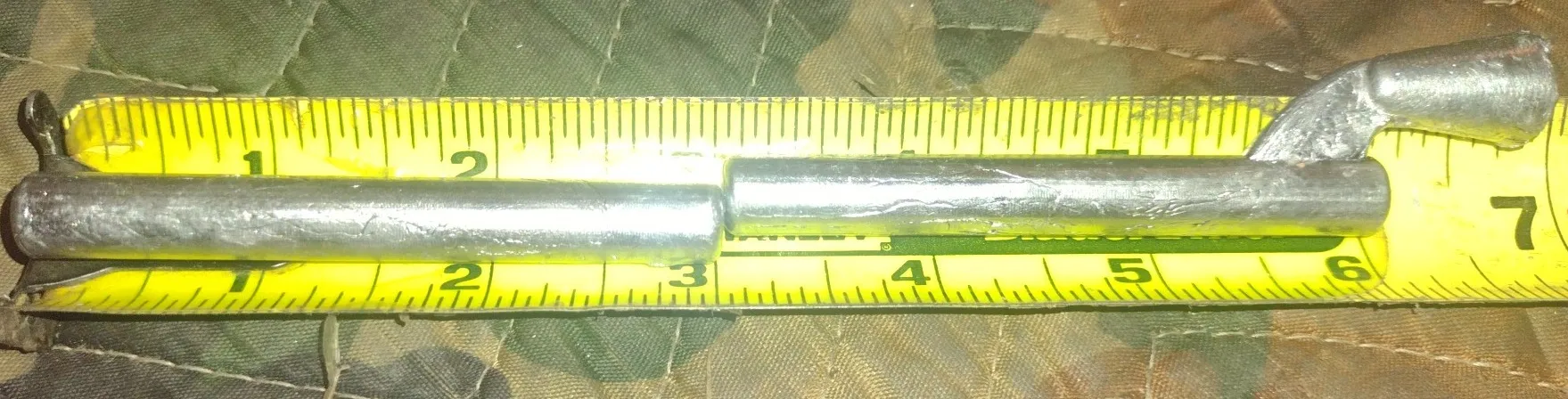

The overal dimensions of the weight is 3in long by 3/8in in diamter.

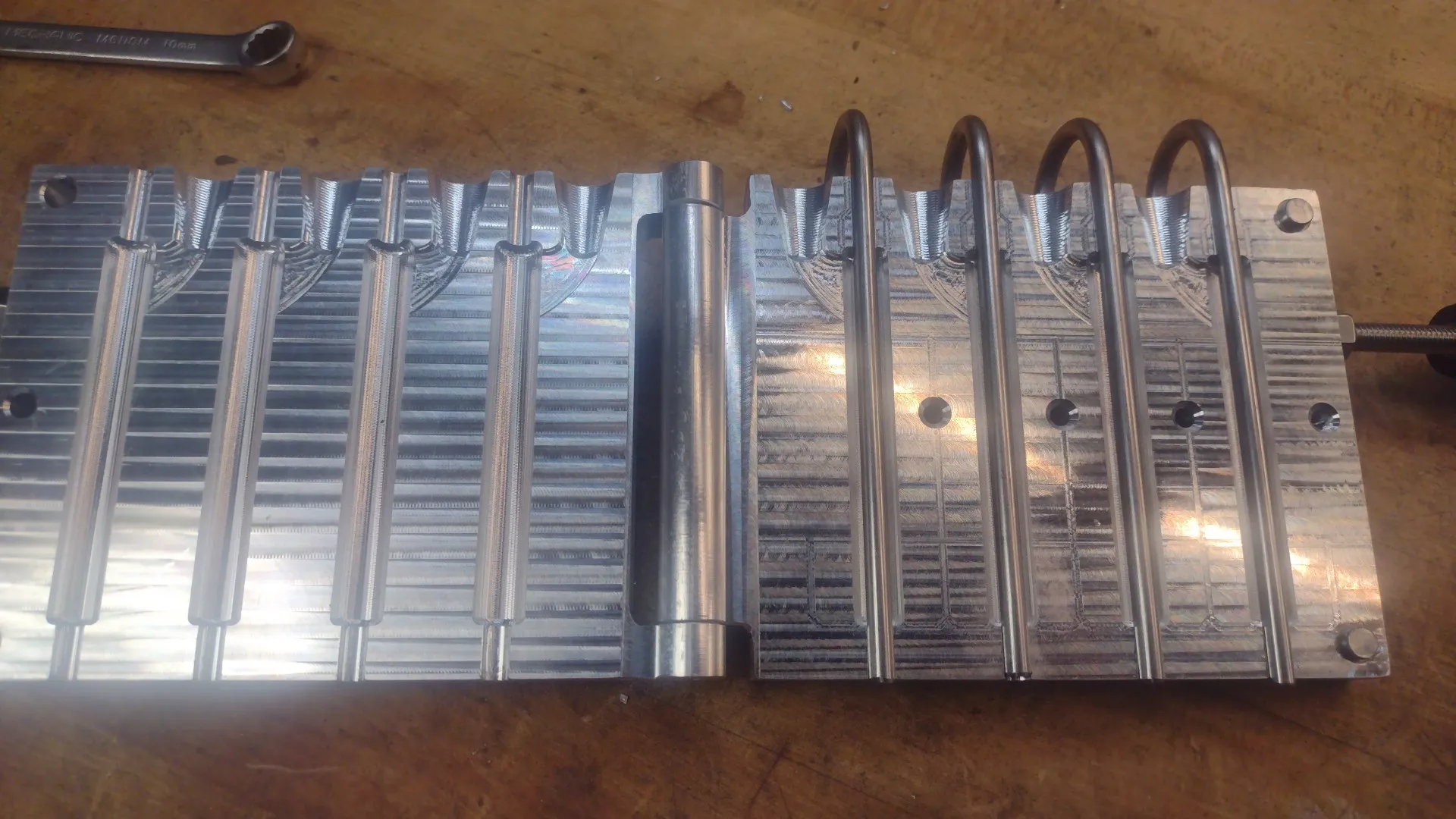

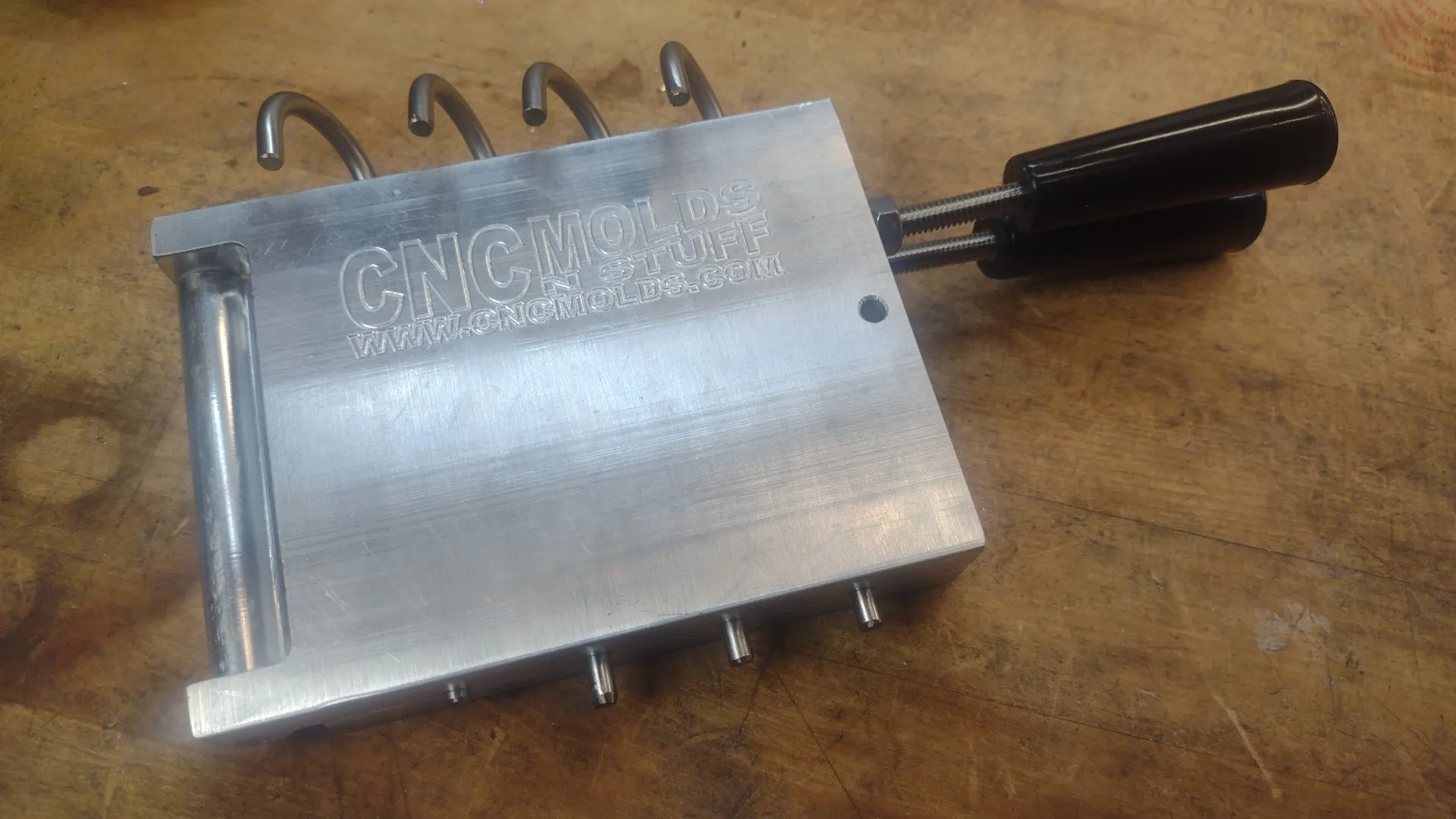

This mold is has four cavities.



Some tips for this mold:

  • The pull pin can act as a heat sink.
  • It may be necessary preheat the mold and pins.
  • You may need to run your lead at a higher temperature.
  • Use a light dusting of talc in the mold cavities to break the surface tension and allow the lead to flow better.
  • By doing these things in test we were able to get four out of four good castings each time.
Product CodeTENV0A9F32
ManufacturerCNC Molds N Stuff
ConditionNew
Weight3.25lb

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$149.95
5+$139.95
