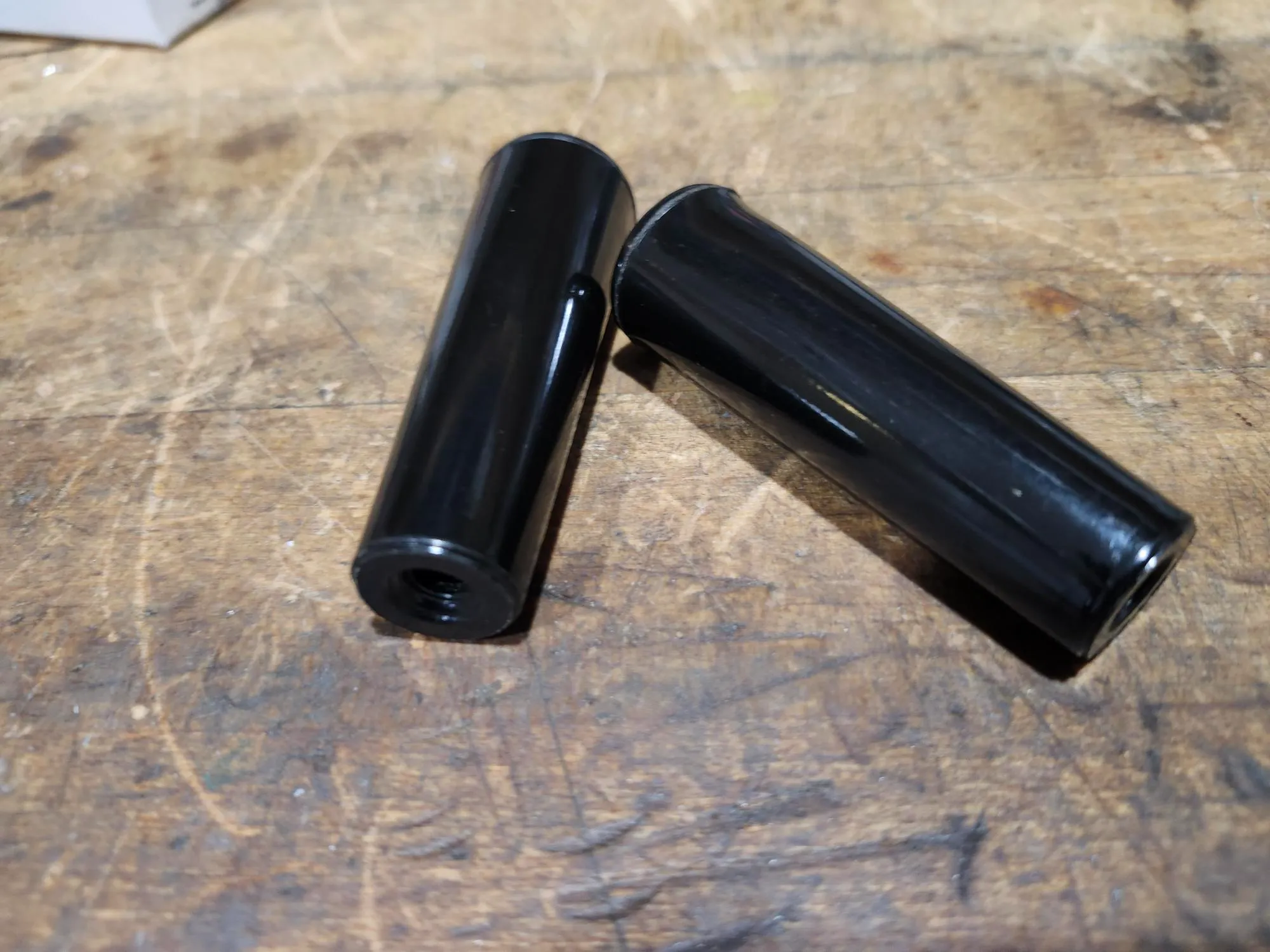

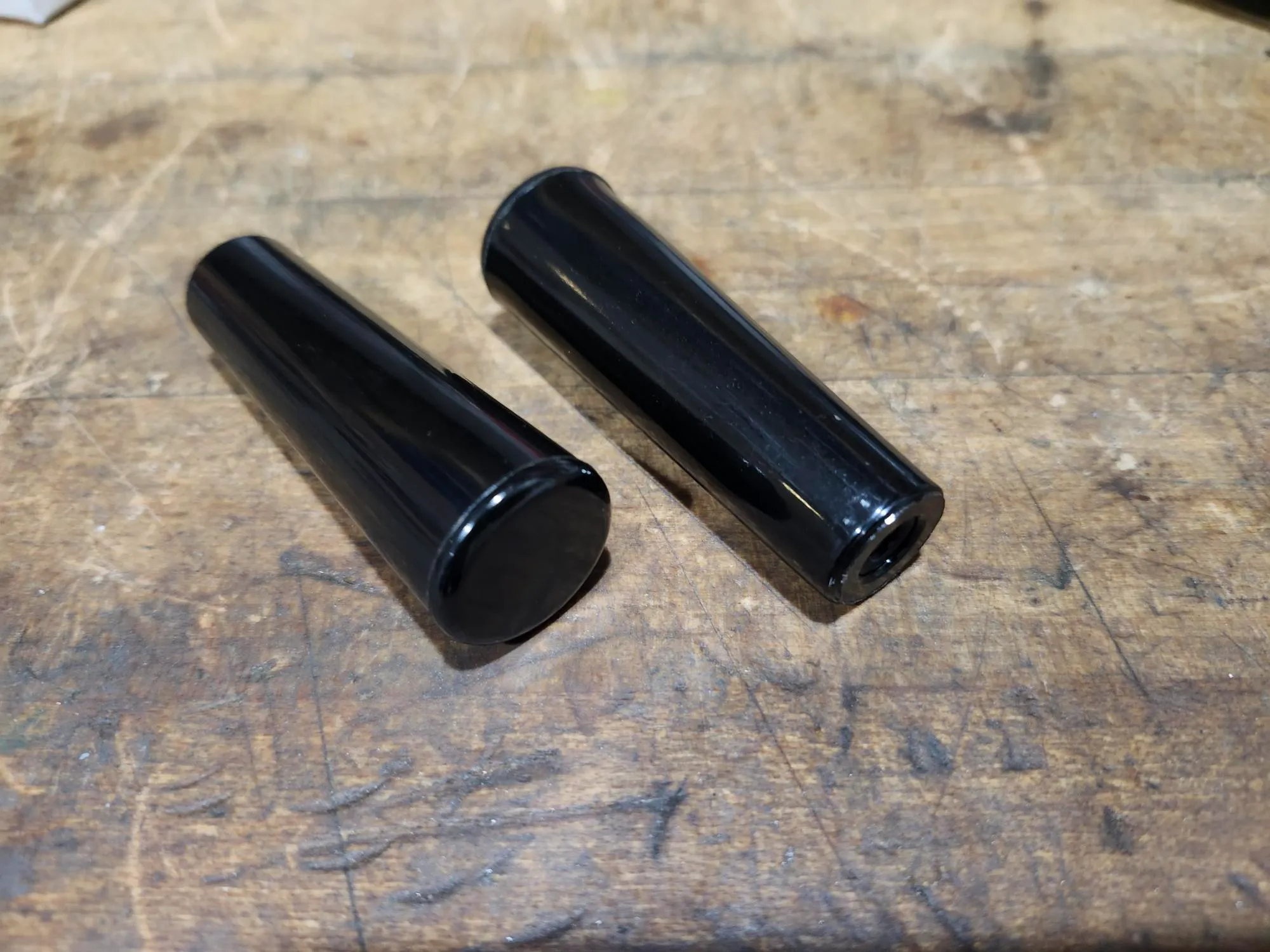

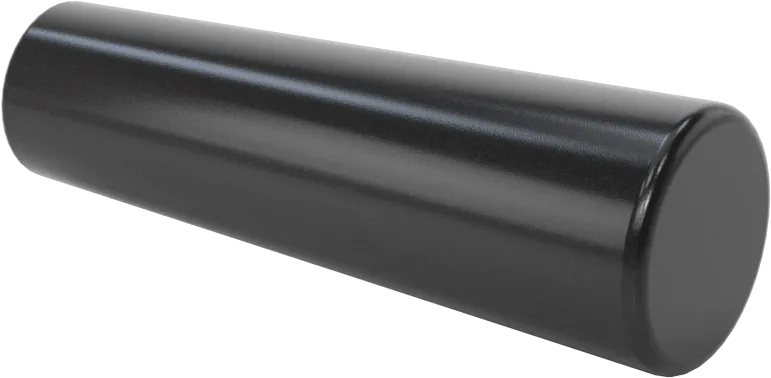

1/4-20 Phenolic Handle (PAIR)

  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
1/4-20 Phenolic Handle (PAIR)

Tap for gallery

$7.99

(Quantity discounts available)


Product Information
Specification
Quantity Discounts

Those are the same heat resistant (not heat proof) phenolic handles we use on many or our metal casting molds.
1/4-20 is the most common size used in the past, and the only size we currently use.
Those are sold in pairs.  The price is for two handles.  The phenolic portion only.

Instructions:  The handle and stud/nut (not included) will not fit on most molds without a slight bend.  Below is the way I install them.

  1. Thread the stud into the handle and tighten it with a 1/8 inch hex key.
  2. Spin the nut onto the stud.
  3. Turn the stud into the mold plate.
  4. When handles are seated as deep as practical and both handles are even, snug nut against mold plate with 7/16 wrench
  5. Holding the mold plate that the stud is threaded into firmly give the stud a slight bend away from the parting line of the mold.   I typically do this across my knee, but other people may wish to clamp in a vise with soft wood jaws.
Product Code1/4-20Pheonlic
ManufacturerOther
ConditionNew
Weight0.01lb

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
1$7.99
20+$6.99
